Simulation with monod_inhibition.fig

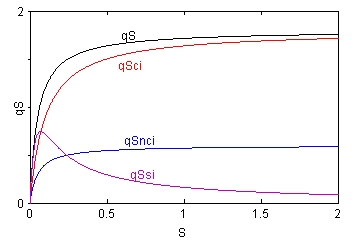

S: Substrate concentration; qS: non-inhibited kinetics; qSci: competitive inhibition ; qSnci: non-competitive inhibition; qSsi: substrate inhibited kinetics.

This simulation demonstrates the typical patterns of common types of inhibition plotted in Monod form.

For information about model equations and parameters: Open the SIMSPEC-file monod_inhibition.fig, available in the SimuPlot toolbox.
