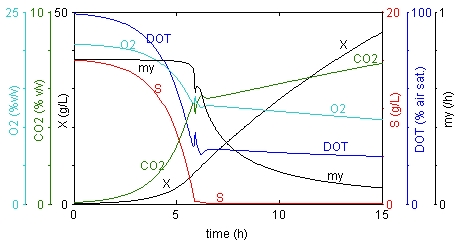

Simulation with fedbatch_Cmol.fig

X: Biomass concentration; S: Substrate concentration; DOT: Dissolved oxygen tension; my: Specific growth rate;
CO2: outlet air CO2 concentration; O2: outlet air O2 concentration.

Dynamic simulation of a fed-batch process using stoichiometric analysis (degree-of-reduction and carbon balancing) which gives better estimate of the oxygen consumption than the simplified model in fedbatch_demo. Furthermore, this analysis also permits calculation of CO2 production.
At the end of the batch phase (6hrs) a constant feed of concentrated substrate was started.
Note that the model can not handle oxygen limitation.

For information about model equations and parameters: Open the SIMSPEC-file fedbatch_Cmole.fig, available in the SimuPlot toolbox.

Updated 2015-02-01
